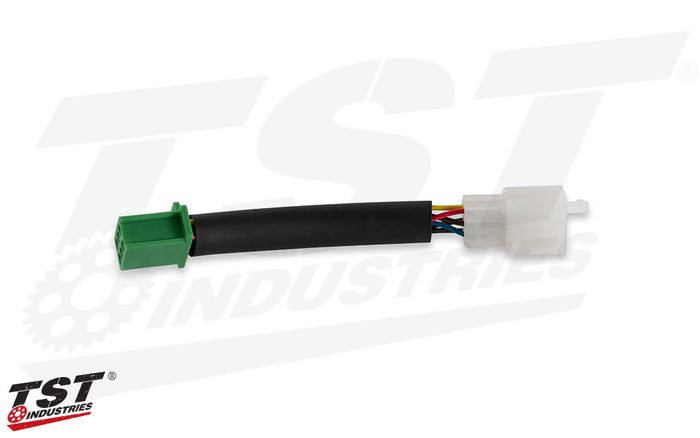

TST Plug and Play Diode Module for LED Turn Signals

Features and Installation

Features

• Plug and play installation - meaning no cutting, splicing, or soldering
• Eliminates issue of all signals blinking when activating only one side of turn signals
• Enables power to flow in single direction from LED turn signals to the dash indicator
• Does not fix hyperflash (LED turn signals flashing faster than OEM specified rate)

Description

When upgrading your Suzuki DR650 with LED turn signals, it's required to install a diode module to prevent all of the signals from blinking at once regardless of left or right signal activation. Some riders choose to splice and solder their own solution, but we like things plug and play. That means all you have to do is plug in our kit and you're done! There's no need to cut or splice your OEM wiring harness or break out the soldering iron and electrical tape.

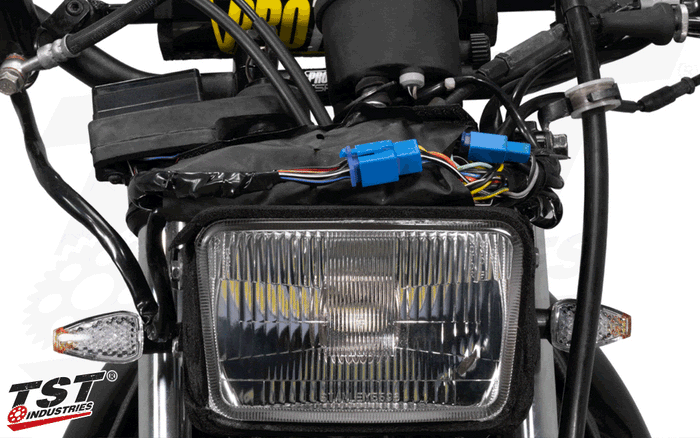

Installation Steps for 1996+ Suzuki DR650

1. Remove headlight shroud
2. Unplug instrument lighting panel
3. Plug instrument lighting panel through our Diode Module
4. Reinstall headlight shroud

Please note this item is not DOT approved and may not comply with the laws and regulations in your area. See our Terms & Conditions for more information.
